DTMF (Dual-Tone Multi-Frequency): Definition and How It Works

DTMF (Dual-Tone Multi-Frequency) is the “touch-tone” signaling you hear when someone presses keys on a phone keypad—and it’s still critical in modern VoIP and call center systems. It powers everyday workflows like IVR menus, voicemail PIN entry, conference bridges, and automated authentication flows, so when DTMF fails, calls connect but customers can’t navigate, verify, or complete actions.

What Is DTMF?

DTMF is a signaling method where each keypad press is represented by two tones played at the same time (one low-frequency tone + one high-frequency tone), allowing phone systems and IVRs to reliably detect which digit (0–9), symbol (*, #), or control key (A–D in some systems) was pressed.

How DTMF Works

DTMF works by sending two audio frequencies at the same time for every keypad press—one tone from a low-frequency group and one from a high-frequency group. This “dual-tone” design makes each key uniquely identifiable and reduces false detection compared to a single-tone system.

The dual-tone principle (what happens when you press a key)

• The keypad is laid out in rows and columns.

• Rows map to low frequencies and columns map to high frequencies.

• When you press a key, the phone plays the row tone + column tone together, and the receiving system detects that specific pair to determine the digit.

On the receiving side (PBX, IVR, carrier, or contact center platform), the system analyzes the incoming audio and looks for those two frequency peaks. If the tone pair matches a valid DTMF combination for long enough (a valid duration), it’s decoded as a key press and passed to the IVR/voicemail/conference app.

Why it still matters in VoIP

Even though VoIP is digital, DTMF remains the universal “user input” method because it works across devices and networks. The only twist is how those digits get transported in VoIP: sometimes as audible tones (inband), sometimes as RTP “events” (RFC2833/4733), or sometimes in SIP signaling (SIP INFO)—which is why mismatched settings can make “Press 1” fail even when the call audio sounds fine.

DTMF in VoIP: The 3 Main Transport Methods

In VoIP, DTMF can be delivered in three common ways. The right choice depends on your PBX, SIP trunk provider, codecs, and whether calls traverse SBCs, transcoding, or call recording systems. Most “DTMF not working” issues happen when the sender uses one method and the receiver expects another.

1) Inband DTMF (DTMF as audible tones in the audio stream)

With inband, the keypad tones are literally sent as audio inside the voice stream—so the far end “hears” the tones and decodes them.

• Best when: you’re using uncompressed codecs (like G.711) and the media path is clean.

• Common failure mode: compression/transcoding can distort tones (especially with highly compressed codecs), causing missed or wrong digits.

• Typical use: legacy interop, simple environments, or when the far-end requires tone audio.

2) RTP Events (RFC2833 / RFC4733) — the most common for SIP trunking

With RTP events, DTMF isn’t sent as audio. Instead, digits are sent as RTP “telephone-event” packets, separate from the voice payload.

• Best when: you want reliability across codecs, jitter buffers, and mixed media paths.

• Why it’s popular: it survives compression and is predictable across trunks/SBCs.

• Common failure mode: mismatched negotiation (payload type/event handling) between endpoints, PBX, SBC, and provider.

3) SIP INFO (DTMF sent in SIP signaling messages)

With SIP INFO, digits are sent as SIP signaling messages rather than in the media stream.

• Best when: a specific platform/provider explicitly expects INFO, or for certain integrations.

• Common failure mode: many environments don’t handle INFO consistently end-to-end (PBX ↔ SBC ↔ provider ↔ IVR), so digits disappear mid-path.

• Typical use: specific carrier requirements, older interop cases, or controlled enterprise environments.

Why DTMF Matters in Call Centers

DTMF is the simplest, most universal way callers “input” information during a live call—so it sits underneath a huge portion of call center automation. When DTMF works, customers can self-serve quickly and agents receive properly routed, authenticated calls. When it fails, calls still connect, but workflows break: IVRs don’t respond, account lookups fail, and queues get flooded with avoidable transfers.

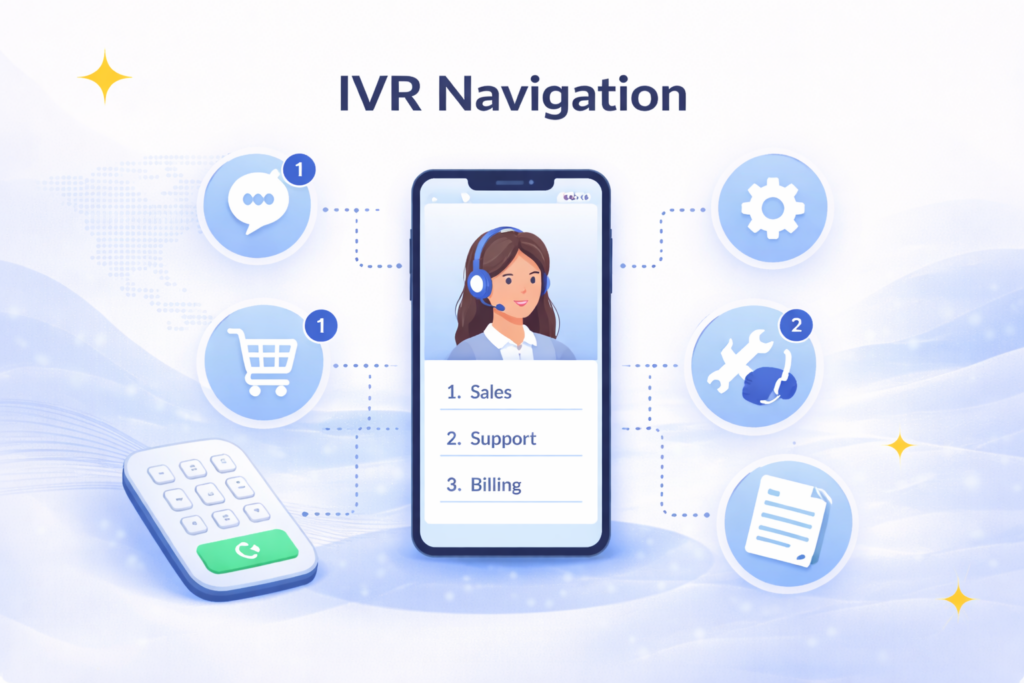

IVR navigation and self-service

DTMF powers the classic “Press 1 for Sales / Press 2 for Support” experience, plus deeper flows like entering account numbers, selecting language, confirming appointments, and reaching the right queue without agent intervention. Reliable DTMF improves containment (more calls handled without agents) and reduces average handle time because callers arrive with the correct intent captured.

Authentication and sensitive workflows

Call centers often use DTMF for PIN entry, verification steps, and “enter your reference number” flows. It’s also commonly used in conference bridges and automated systems where voice recognition is unreliable or not available. The key point: if you run identity or payment-adjacent workflows, DTMF reliability is not a “nice-to-have”—it directly impacts completion rates and customer trust.

Operational impact when DTMF breaks

DTMF issues are deceptively expensive. A small mismatch (inband vs RFC2833/4733 vs SIP INFO) can cause:

• Failed IVR selections (“pressing keys does nothing”)

• Incorrect routing (callers stuck in the wrong menu/queue)

• Higher agent load (more zero-value calls reaching humans)

• Longer call times and worse customer experience

Best Practices

• Prefer RTP events (RFC2833/RFC4733) for VoIP
  This is the most reliable option across SIP trunks and mixed codec paths because digits are sent as events (not distorted audio). Use inband only when you have a specific reason and a clean G.711 path.

• Standardize one DTMF method end-to-end
  Pick a single method and enforce it across endpoints/softphones, PBX/CCaaS, SBC, and the SIP trunk. Most DTMF failures are simply “sender uses A, receiver expects B.”

• Keep your codec path predictable (avoid unnecessary transcoding)
  Transcoding and compression increase the chance of DTMF issues—especially for inband. If you must use inband, keep calls on G.711 and minimize media hops.

• Align DTMF settings with your provider/IVR requirements
  Confirm what your SIP trunk or downstream IVR expects (RTP events vs SIP INFO vs inband) and configure your PBX accordingly. Don’t assume defaults match.

• Test DTMF on the workflows that actually matter
  Always test: IVR menu navigation, voicemail PIN entry, conference bridge controls, and any authentication flows—especially after trunk changes, codec changes, SBC changes, or platform upgrades.

• Watch for “DTMF works internally but fails externally”
  If internal extension-to-extension works but trunk calls fail, the mismatch is usually at the trunk/SBC boundary (method negotiation, payload/event handling, or media path/NAT).

• Document the chosen method and make it part of change control
  Treat DTMF as a production dependency: record the chosen method, expected behavior, and where it’s configured so it doesn’t get “fixed” differently by different admins later.

Conclusion

DTMF may look like a legacy concept, but it’s still the backbone of everyday call flows—IVR navigation, voicemail PINs, conference controls, and call center authentication. In VoIP environments, the key to reliability is understanding how DTMF is transported (inband vs RTP events vs SIP INFO) and then standardizing one method end-to-end across endpoints, PBX/CCaaS, SBCs, and SIP trunks. If you treat DTMF as a first-class dependency and test it after changes, you’ll avoid the classic “calls connect but pressing keys does nothing” failures.

FAQs

What does DTMF stand for?

DTMF stands for Dual-Tone Multi-Frequency, the touch-tone signaling method used when a caller presses keys on a phone keypad.

What is DTMF used for in call centers?

DTMF is used for IVR menu navigation, self-service flows (entering account numbers), voicemail PIN entry, and conference bridge controls—basically any “press a key” interaction during a call.

What’s the best DTMF method for VoIP?

In most VoIP and SIP trunking environments, RTP events (RFC2833/RFC4733) are the most reliable because digits are sent as events rather than audio tones that can be distorted by codecs or transcoding.

Why does DTMF fail on some calls even though audio is fine?

Because the call can have working voice media but mismatched DTMF settings—one side sends inband tones while the other expects RFC2833/4733 events (or SIP INFO). Codec compression, transcoding, SBC behavior, and NAT/media path changes can also break DTMF.

How do I fix “DTMF not working” on a SIP trunk?

Start by aligning the DTMF method end-to-end (PBX, SBC, provider) and retest IVR flows. If you’re using inband, switch to RFC2833/4733 where supported and minimize transcoding. If the provider requires SIP INFO, ensure every hop supports INFO consistently.
